Gabion Box Description
Gabion Basket (Boxes) are made of hexagonal Galvanized/PVC/Zinc-Al
double-twised mild steel wire mesh.
Gabion baskets can be supplied in various lengths, widths and
heights. In order to strengthen the baskets, all the edges of the
structure shall be selvedged thicker wire diameter.
These Gabion boxes are filled with natural stones at the project
site to form flexible, permeable, monolithic structures such as
Retaining walls, sea walls, channel lining, revetments, and wires
for erosion control projects.
Gabion Box Introduction
1.material:low carbon iron wireQ195
2.wire gauge:2.0mm--5.0mm
3.hole size:60*80,80*100,100*120,120*150
4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement
5.surface treatment:electro galvanized,hot dipped galvanized
6.application:rock fall protection,gabion wall,gabion matresses,roadway
protection.
Gabion Box Application
--- Retaining wall structures
---- River and canal training
----Erosion and scour protection; roadway protection; bridge
protection
----Coastal embankment works
---- Architectural cladding for walls and buildings
---- Freestanding walls, noise and environmental barriers
---- Land spacing gabions
---- Deco-rock walls
Gabion Box Advantages
1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.No collapse even under big scope of deforming.
5.Good permeation can prevent the damage by hydrostatic.
6.Less transport freight. It can be fold together for transport.
7.Sludge in the stones is good for plant growing.

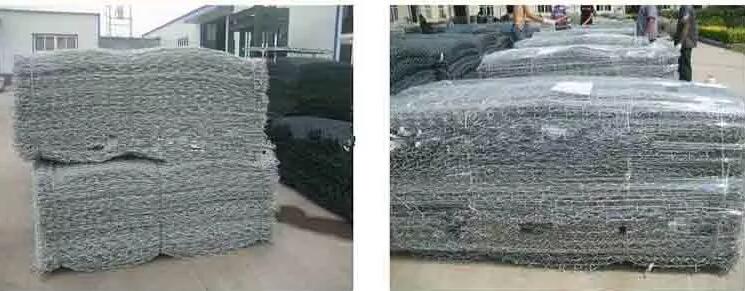

Packing of Gabion Box
The gabion box is folded and packaged with belt and then wrap it up
with plastic paper or waterproof paper,50-100 sets of gabion box in
a flat bundles,or packed on pallets,or as customs requirements.
Gabion Box Product Show
