Stainless Steel 316 Random Packing For Gas strippers 50*50*0.6mm
Product Description:
- Product Name: Metal Random Packing
- Void Fraction: High Void Fraction
- Materials: CS, SS, Copper, Titanium
- Certification: ISO9001:2015
- Port: Xingang
- Diameter: 25~90mm
- Product Attributes:
- Cascade Miniring Packing
- Metal Tower Packing
- Pall Ring Packing

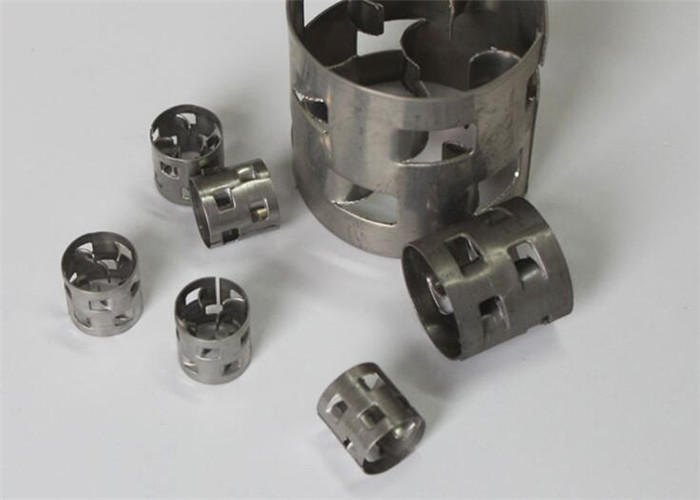

The metal pall ring packing was invented by the German company BASF
in the 1940s. It is made of sheet metal and has a total area of
about 35% of the ring wall. Compared with the same Raschig ring
packing specifications, the pall ring packing has many holes in the
ring wall, allowing gas and liquid to flow freely through, and
greatly enhancing the gas and liquid distribution in the packing
layer. As a result, the separation performance of the pall ring
filler is greatly improved. It remains one of the main ring
packings used today.
Features:
High resistance to fouling Multiple materials available
High temperature applications Mechanically robust
Lesser probability of breakage Good liquid/gas distribution
High mass transfer efficiency
Technical Parameters:
| Product Name: | Metal Tower Packing |
| Key Words: | Random Packing, Tower Packing For Gas Scrubbing, Cascade Miniring
Packing, Packing For Gas Liquid Seperation |
| Materials: | CS, SS, Copper, Titanium |
| Diameter: | 25~90mm |
| Surface Area: | High Surface Area |
| Feature: | High Capacity, Low Pressure Drop |
| Corrosion Resistance: | Excellent Corrosion Resistance] |
| Production Period: | 40HQ/15 Days |
| Certification: | ISO9001:2015 |
| Port of Loading: | Xingang Port |
| Product Name | Stainless Steel Metal Pall Ring |
| Material | metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area | 62 - 346 m2/m3 |
| Bulk Density | 145 - 345 kg/m3 |
| Feature | Corrosion and Heat Resistance |
| Size | 16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification | ISO9001 |
| Place of Origin | Hebei Province,China |
| Brand Name | Yuanhai |
Applications:
The Metal Pall ring is a highly efficient type of packing material
used in Vacuum distillation processes. It is designed to offer
optimal surface area and void space, allowing for superior heat
transfer during these operations.
In addition to its use in Vacuum distillation, the Metal Pall ring
can also be utilized in a variety of applications. For instance,
Wet scrubbers for gas absorption also often employ this type of
packing material. In such systems, the Pall rings work to create
more contact between the gas and scrubbing liquid, leading to
greater absorption efficiency.
Cooling towers represent another area where Metal Pall rings can be
applied. Here, the rings allow for more uniform distribution of
water, promoting effective heat transfer. Similarly, Mist
eliminators also make use of Pall rings in order to remove liquid
particles from gas streams.
Finally, some Gas absorption columns, Gas strippers, and Air
washers may also utilize Metal Pall rings as part of their
structure or design.
Customization:
Product Customization Services for Metal Random Packing
Brand Name: Yuanhai
Model Number: YH-04
Place of Origin: Hebei Province, China
Certification: ISO9001:2015
Minimum Order Quantity: 1 m³
Price: Negotiation
Packaging Details: By Wooden Box
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 800 Cubic Meter/Cubic Meters per Month
Materials: CS, SS, Copper, Titanium
Port of Loading: Xingang Port
Production Period: 40HQ/15 Days
Key Words: Random Packing, Bulk Packing, Rasching Ring Packing,
Cascade Miniring Packing
FAQ:
Frequently Asked Questions for Yuanhai's Metal Random Packing
(YH-04)
Q: What is the model number of Yuanhai's Metal Random Packing?
A: The model number of Yuanhai's Metal Random Packing is YH-04.
Q: Where is Yuanhai's Metal Random Packing produced?
A: Yuanhai's Metal Random Packing is produced in Hebei Province,
China.
Q: What certifications does Yuanhai's Metal Random Packing have?
A: Yuanhai's Metal Random Packing is ISO9001:2015 certified.
Q: What is the minimum order quantity for Yuanhai's Metal Random
Packing?
A: The minimum order quantity for Yuanhai's Metal Random Packing is
1 m³.
Q: What is the packaging and delivery time for Yuanhai's Metal
Random Packing?
A: Yuanhai's Metal Random Packing is packaged in wooden boxes and
has a delivery time of 7 days.
Q: What are the payment terms and supply ability for Yuanhai's
Metal Random Packing?
A: The payment terms for Yuanhai's Metal Random Packing are T/T and
the supply ability is 800 cubic meters per month. Prices are
negotiable.
