    358 Anti Cut Fence Panel High Strength Welded Mesh For Maximum Security Applications

    358 Anti Cut Fence Panel - High Strength Welded Mesh for Maximum Security Applications


    Product introduction:

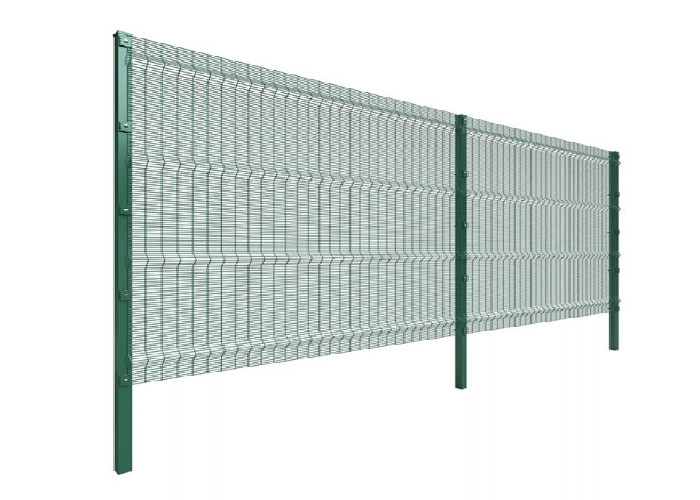

    The 358 Anti Cut Fence Panel is engineered for maximum perimeter security, featuring a 76.2mm x 12.7mm (3" x 0.5") welded mesh design that prevents climbing, cutting, and intrusion. Made from high-tensile galvanized steel, this fence panel is ideal for high-risk facilities requiring tamper-proof, anti-scale protection.


    Technical Data Sheet:


    ParameterSpecification
    Mesh Size76.2mm (L) x 12.7mm (W) (3" x 0.5")
    Wire Diameter4.0mm (vertical) / 5.0mm (horizontal)
    MaterialHigh-tensile steel
    CoatingHot-dip galvanized (300g/m²) or PVC-coated
    Panel Size2.4m (H) x 3.0m (W) (Custom sizes available)
    Frame50x50mm steel tubing (2.5mm thickness)
    Security StandardsISO9001:2015

    Key Features:


    1.Superior Anti-Cut & Anti-Climb Design

    • Ultra-small mesh apertures (3" x 0.5") prevent hand/foot holds
    • 4.0mm-5.0mm thick wires resist bolt cutters and sawing

    2.Military-Grade Durability

    • Hot-dip galvanized coating (300g/m²) for 25+ years of rust resistance
    • Optional PVC coating (RAL 6005 green/black) for added UV/chemical protection

    3.Crash & Impact Resistant

    • Reinforced 50x50mm steel frame for structural rigidity
    • PAS 68 certified for vehicle impact resistance

    4.Easy Installation & Low Maintenance

    • Pre-assembled panels with bolt-on brackets for quick deployment
    • No welding required; modular design fits curved perimeters

    Manufacturing Process:


    Wire Drawing – Cold-drawn steel wire (4.0mm-5.0mm) for high tensile strength

    Automated Welding – Precision CNC welding ensures uniform mesh structure

    Hot-Dip Galvanizing – 450°C zinc immersion for corrosion resistance

    PVC Coating (Optional) – Electrostatic spray for color & extra durability

    Panel Assembly – Robotic welding of 50x50mm steel frames

    Quality Control – Salt spray testing, mesh tension checks, and load testing


    Applications:


    Prisons & Detention Centers – Prevents escapes and unauthorized access

    Military & Government Sites – Protects against forced entry

    Airports & Critical Infrastructure – Perimeter security for high-risk zones

    Industrial Facilities – Secures oil refineries, power plants, and data centers

    Commercial Properties – VIP estates, banks, and high-value storage


    FAQ:


    Q: How does the 358 mesh compare to chain-link fencing?
    A: Far more secure—its small apertures and thick wires resist cutting/climbing, unlike chain-link.

    Q: What’s the lifespan in coastal areas?
    A: 20+ years with galvanized coating; 30+ years with PVC.

    Q: Is customization possible?
    A: Yes—custom heights, widths, and coatings available.

    Q: How fast can it be installed?
    A: 3x faster than welded fences due to pre-assembled panels.


    Custom Solutions Available: Contact our engineering team for project-specific configurations, including non-standard dimensions, special fixings, or enhanced security features.
