Galvanized lron Wire Gabion Baskets Green, Blue, Red And Black
Product Description:
Our colored gabion baskets combine environmental sustainability
with structural reliability. Made from low-carbon iron wire with
vibrant PVC coating, these modular units provide erosion control
while enhancing landscape aesthetics. Available in standard green
plus custom blue, yellow, and white finishes.
| Gabion Box Size (m) | Mesh Size (mm) | Number of Diaphragm | Length (m) | Width (m) | Height (m) | Capacity (m³) | Tolerance | Color Options | Wire Diameter (mm) |
| 2.00 x 1.00 x 0.30 | 80x100 | 1 | 2.00 | 1.00 | 0.30 | 0.60 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 2.00 x 1.00 x 0.50 | 80x120 | 1 | 2.00 | 1.00 | 0.50 | 1.00 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 2.00 x 1.00 x 1.00 | 80x120 | 1 | 2.00 | 1.00 | 1.00 | 2.00 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 3.00 x 1.00 x 0.30 | 100x120 | 2 | 3.00 | 1.00 | 0.30 | 0.90 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 3.00 x 1.00 x 0.50 | 120x150 | 2 | 3.00 | 1.00 | 0.50 | 1.50 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 3.00 x 1.00 x 1.00 | 120x150 | 2 | 3.00 | 1.00 | 1.00 | 3.00 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 4.00 x 1.00 x 0.30 | 120x150 | 3 | 4.00 | 1.00 | 0.30 | 1.20 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 4.00 x 1.00 x 0.50 | 120x150 | 3 | 4.00 | 1.00 | 0.50 | 2.00 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 4.00 x 1.00 x 1.00 | 120x150 | 3 | 4.00 | 1.00 | 1.00 | 4.00 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 2.00 x 0.50 x 0.50 | 120x150 | 1 | 2.00 | 0.50 | 0.50 | 0.50 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
| 3.00 x 0.50 x 0.50 | 120x150 | 2 | 3.00 | 0.50 | 0.50 | 0.75 | Length±5%, Width±5%, Height±5% | Blue, Red, Green, Black | 2.0-4.0 |
Other sizes can be customized according to customer requirements.
Mesh size, wire diameter, and color options are flexible based on
project needs.
Tolerance for dimensions is typically ±5% unless otherwise
specified.
- Key Features:
1. Environmental Advantages
Eco-Coating: Lead-free PVC with RoHS compliance
Permeability: Natural drainage prevents hydrostatic pressure
Habitat Friendly: Vegetation grows through mesh over time
2. Structural Benefits
Hexagonal Weave: Double-twist construction resists unraveling
Modular Design: Interlocking units create continuous structures
Flexible Foundation: Adapts to ground settlement
3. Aesthetic Value
Color Options: Blend with landscapes or create visual accents
Natural Integration: Rustic stone fill complements colored mesh
Characteristics:
- Low carbon iron gabion baskets are an ideal choice for engineering
projects due to their eco-friendliness, durability, permeability,
flexibility, ease of installation, aesthetic appeal, and
cost-effectiveness. They are particularly suitable for ecological
restoration and environmental protection projects.
Manufacturing Process:
Wire Drawing
Cold-drawn to precise diameters (±0.05mm)
Galvanizing
Hot-dip zinc coating at 450°C
PVC Extrusion
Powder coating followed by oven curing

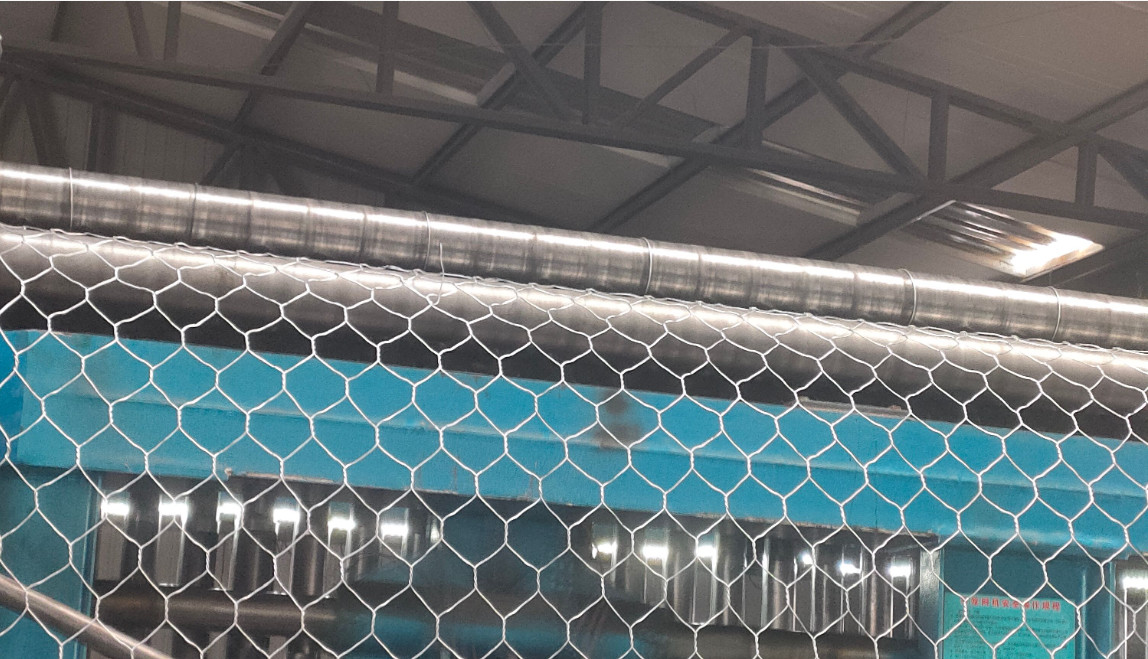

Weaving
Automatic double-twist machines form hexagonal mesh
Assembly
Reinforced edges with 6-8mm selvedge wires
Diaphragms added for multi-cell units
Quality Control
Salt spray testing (2000+ hours)
Mesh tension verification
Low carbon gabion baskets are a highly advantageous solution due to
their eco-friendliness, durability, permeability, flexibility,
cost-effectiveness, and versatility. They are widely used in
erosion control, infrastructure projects, landscaping, and
ecological restoration, offering both functional and aesthetic
benefits while supporting sustainable development.
Low carbon iron gabion baskets are a multi-functional solution for
a wide range of applications, including erosion control, slope
stabilization, flood management, landscaping, and ecological
restoration. Their adaptability, strength, and eco-friendly nature
make them a preferred choice in both engineering and environmental
projects.
