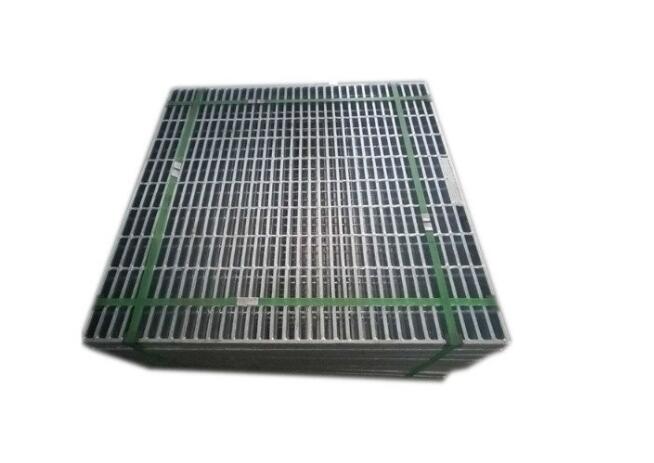

Q235 Galvanized Serrated Steel Walkway Grating For Workshop
1''x3/16''
Steel Walkway Grating Description
Steel grid gratings are press-welded by auto-welding machine, the
original panle size usually around 1x6mtr. Then they will be cut to
size according to the drawings. And we can make the specs as per
American standard, European standard, Australian Webforge standard,
etc.
For example:19-W-4 is the steel grating mesh size described as per
America Standard. It means that the bearing bar pitch is 19/16
(1-3/16) inch which is approximately equal to 30mm, and the cross
bar pitch is 4 inch which is approximately equals to 100mm.
Therefore, 19w4 steel bar grating is same as steel gratings with
mesh size 30x100mm. It is regular type in Chinese Market, and it
can be electro-forged by machine directly.
Steel Walkway Grating Specification
|
| Item | Description |
| Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5,
50…75x8mm, etc. US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',
1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc |
| Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| Cross bar pitch | 40, 50, 60, 65,76,100,101.6,120,130mm or as customers’ requirement. |
| Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| Materials | Low carbon steel (Q275/Q235/Q195,ASTM A36, A1011, A569, S275JR,
SS304, SS400,UK: 43A),Stainless steel,aluminum alloy,etc |
| Galvanizing standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Steel grating standards | A. China: YB/T4001-1998 |
| B. USA: ANSI/NAAMM (MBG 531-88) |
| C. UK: BS4592-1987 |
| D. Australia: AS1657-1988 |
| E. Japan: JJS |
| Surface treatment | Black,Electro galvanized(Cold dip galvanized),Hot dipped
galvanized,Painted,Powder coated,or as customers’ requirements.And
hot dipped galvanizing is generally recommended.
|
Steel grid gratings Surface Treatment
1) Hot dip galvanized as per ASTM A123 or EN ISO 1461 or special
requirement
2) Painted or Powder Coated
3) HDG plus painted/powder coated
Steel Walkway Grating Application
They are widely used in Flooring, catwalk, mezzanines/decking,
stair tread, fencing, ramp, dock, trench cover, drainage pit cover,
maintenance platform,pedestrian/crowded pedestrian, factory,
workshop, motor rooms, trolley channel, heavy loading area, boiler
equipment and heavy
equipment area, etc. We are professional factory to design and
manufacture standard steel grating and customize according to
client's requirements.
