3x2x1m Defensive Barriers /Army Border Perimeter Gabion 80x100mm
Galvanized Gabion Box Introduction
Gabion box also named gabion basket , heavy hexagonal mesh ,rock
filled gabion cage,retaining wall for protection etc,made of
galvanized wire,PVC coated wire.
1.material:low carbon iron wireQ195
2.wire gauge:2.0mm--5.0mm
3.hole size:60*80,80*100,100*120,120*150
4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer
requirement
5.surface treatment:electro galvanized,hot dipped galvanized
6.application:rock fall protection,gabion wall,gabion
matresses,roadway protection.
Galvanized Gabion Box Surface Treatment
1.Galvanized steel wire :low carbon steel wire
2.Zinc-5% aluminum-mixed metal alloy steel wire ,a new-type
material
3.Galvanized steel wire ,PVC or PE coating
Galvanized Gabion Box Specification
| Goods Name | Gabion Box |
| Raw material | Galvanized wire
Galfan Coating ( Zn-5% AI-mixed alloy coating, Zn-10% AI-mixed
alloy coating)
PVC coated galvanized (Galfan) wire |
| Type | Hexagonal woven type and welded mesh type |
| Specification | See below data sheets |
| Feature | • Uniform wire coating for extra durability
• Flexible & permeable structure
• Tolerates differential settlement
• Easy to install
• No special labour is required for installation |
| Application | • Control and guide of water or flood.Flood bank or guiding bank
• Preventing of rock breaking.Water and soil protection
• Bridge protection.Strengthening structure of soil
• Protection engineering of seaside area.Seaport engineering
• Isolation walls.Protection of road |
| Quality Guarantee | Each batch Goods provided the inspection report. |
| Packing | By bundle with plastic bag, then put in wooden pallet. |
| Customized | Customized size is available |
Galvanized Gabion Box Feature
(1) Construction is simple,
(2) Can withstand a large range of deformation, but still does not
collapse.
(3) Silt between the cage stones is conducive to plant production
and integrates with the natural environment.
(4) Good permeability, prevent the damage caused by the static
fluid, is conducive to the stability of the slope and shore.
(5) Saving transportation costs.Fold transport and assemble on
site.
(6) Good flexibility: no structural joints, the overall structure
has ductility.
(7) Corrosion resistance: PVC coating is not afraid of erosion.
Galvanized Gabion Box Advantage
1.We have the most advanced equipment-. With the new production
line, we can produce the high quality and standard gabions.
2.Anti rust material,gabion will be without rust for years. Because
the material'scorrosion resistence is 3 times higher than the
traditional pure zinc wire
3.Its technological requirements are strict, production cycle is
short and shipment speed is fast.
Galvanized Gabion Box Application
1.Controlling and leading the river and flood.
2. Flood discharge and lead flow.
3. Rock fall defending.
4. Preventing the water and soil lost.
5. Protecting the bridge.
6. Great Perviousness, pliability and anti-corrosion.
7. Resist the scour
8. Holistic capability
9. Easy to Construct
10. Economical and environmental protection

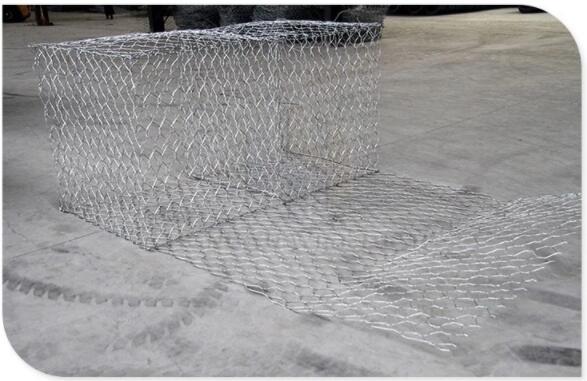

Galvanized Gabion Box Product Show
