    Cross Loop BTO-10 BTO-22 1000mm Razor Barbed Wire

    Ask Lasest Price
    Brand Name : YuanHai
    Model Number : YH-22
    Certification : ISO9001:2008
    Price : US$8~25
    Payment Terms : T/T
    Supply Ability : 10000 Roll/Rolls per Month
    Delivery Time : 3-10 days
    • Product Details
    • Company Profile

    Cross Loop BTO-10 BTO-22 1000mm Razor Barbed Wire

    Concertina Razor Wire Razor Barbed Wire Fencing 500mm Coil Diameter


    Razor Barbed Wire Description


    Razor Barbed Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.


    Razor Barbed Wire Specification


    Reference
    Number
    Thickness
    mm
    Wire Dia.
    mm
    Barb Length
    mm
    Barb Width
    mm
    Barb Spacing
    mm
    BT0-120.5±0.052.5±0.112±115±126±1
    BT0-150.5±0.052.5±0.118±115±133±1
    BT0-220.5±0.052.5±0.122±115±134±1
    BT0-300.5±0.052.5±0.1301845±1
    CBT-600.6±0.052.5±0.160±232±1100±2
    CBT-650.6±0.052.5±0.165±221±1100±2

    Outer diameterNo.of Loops

    Standard Length

    per Coil

    TypeNotes
    450mm337M-8MCBT-65Single coil
    500mm4110MCBT-65Single coil
    700mm4110MCBT-65Single coil
    960mm5411M-15MCBT-65Single coil
    500mm10215M-18MBTO-12.18.22.28.30Cross type
    600mm8613M-16MBTO-12.18.22.28.30Cross type
    700mm7212M-15MBTO-12.18.22.28.30Cross type
    800mm6413M-15MBTO-12.18.22.28.30Cross type
    960mm5212M-15MBTO-12.18.22.28.30

    Cross type


    Razor Barbed Wire Feature


    Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.


    Razor Barbed Wire Packing Details

    1. compression rolls, 5rolls, 10rolls, or more rolls as one bundle
    2. water-proof paper inside with woven bag outside
    3. 1roll, 3rolls or 5rolls in one carton
    4. as customer request

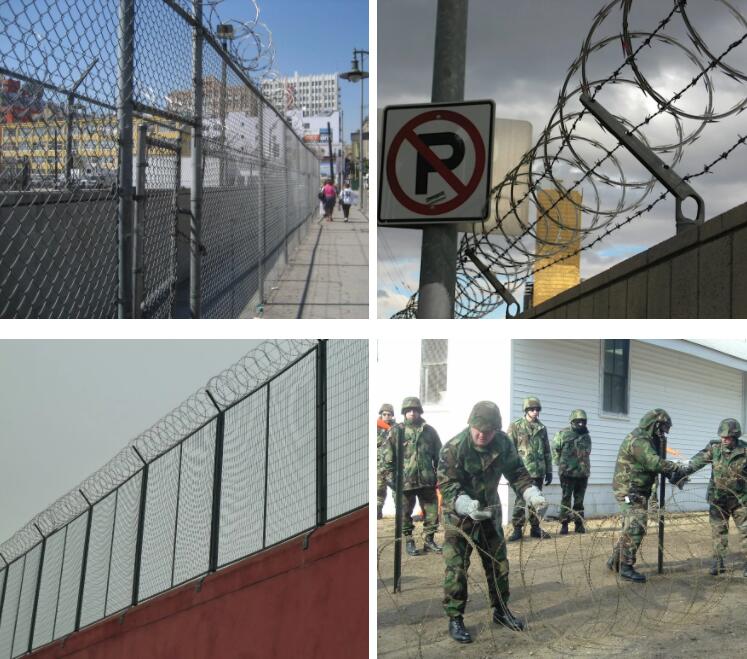

    Razor Barbed Wire Application


    Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities.

    Also used for division of railway, highway, agricultural fencing, etc.


    Surface Treatment


    Hot Dip Galvanized PVC Coating

    Razor Barbed Wire Usage
