SS 304 Mist Eliminator Wire Mesh Demister Pad For Vapor Liquid Filter

Mist Eliminator Description

Mist Eliminator (also known as wire mesh demister, wire mesh foam trap) is used to remove the fog entrained in the gas (fog
droplets), recover expensive fog droplets (precious materials), or purify the gas to reduce impurities in the gas. The wire mesh
mist eliminator is made of corrosion resistant metal wire of 0.15 m~0.25 m m, or wire mesh woven by special warp and weft with engineering plastic wires such as P and P T F E, and then pressed into wave type (W type) and overlapped. The wire mesh demister has the characteristics of small pressure drop, large specific surface area and high demister efficiency. For fog droplets above 3 microns, the efficiency of fog removal can reach more than 98%.

Mist Eliminator Specification

Mist Eliminator Material

* SS 304 --------------Water solution ,nitric acid ,reduced crude
* SS 304L ------------Petroleum fractions
* SS 316 --------------Fatty acids ,reduced crude
* SS 316L ------------Naphtenic acids ,and other corrosives
* Nickel wire --------Strong acid,strong alkali, (with long service life)

Feature of Mist Eliminator

* Simple structure, lightweight
* Easy installation, operation and maintenance
* 99% efficiency under general conditions and velocity (1~3m/sec or higher)
* Can be made of any material suitable for the given temperature and corrosion-resistance
* Long service life
* Fits in all process equipment

The demisting process of Mist Eliminator

The operating principle behind the mist eliminator is simple. As the wet vapour stream rises through layers of contracting surfaces within the knitted and crimped wire matrix, entrained as they continuously impact each surface. The gas within the vapour stream continues to rise as the heavier liquids separate, attach and coalese into droplets within a mesh. as the droplets grow, so does their weight until they fall to the bottom of the vessel due to gravity. Liquid accumulations can then be drained out of the bottom as, the gas is routed through the top of the Vessel.

The Advantages of Mist Eliminator

>High removal efficiency
>Negligible pressure drop, less than 25mm of water gauge
>No maintenance or service required

>No corrosion or temperature limitations
>Easily installed in existing vessels
>No limitation on size or shape.

Mist Eliminator Appilcation

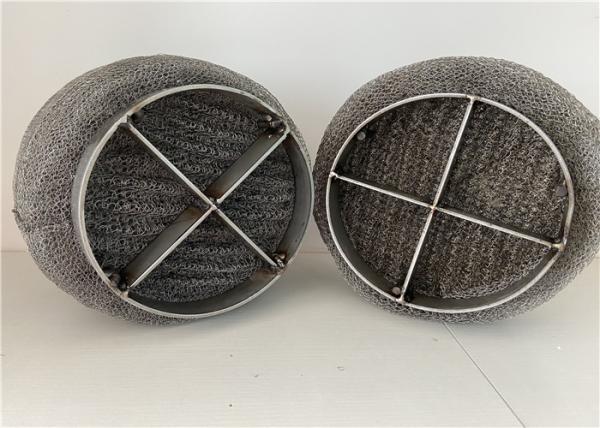

Stainless steel demister pad can be made into different types to suit different equipment and devices. Stainless steel demister pad can be made into round shapes, rectangular shapes, ring shapes and various customized shapes.
Stainless steel demister pad can also be made into drawer types and wavelike types. Drawer types for easy transporting and installing, wavelike types for larger contact area and higher filtering efficiency.

Petroleum, chemical, light industry, medicine, metallurgy, aerospace, ship, environmental protection engineering distillation, evaporation, absorption and other processes in the gas-liquid separation, gas separation, mechanical equipment, oil and gas separation.
