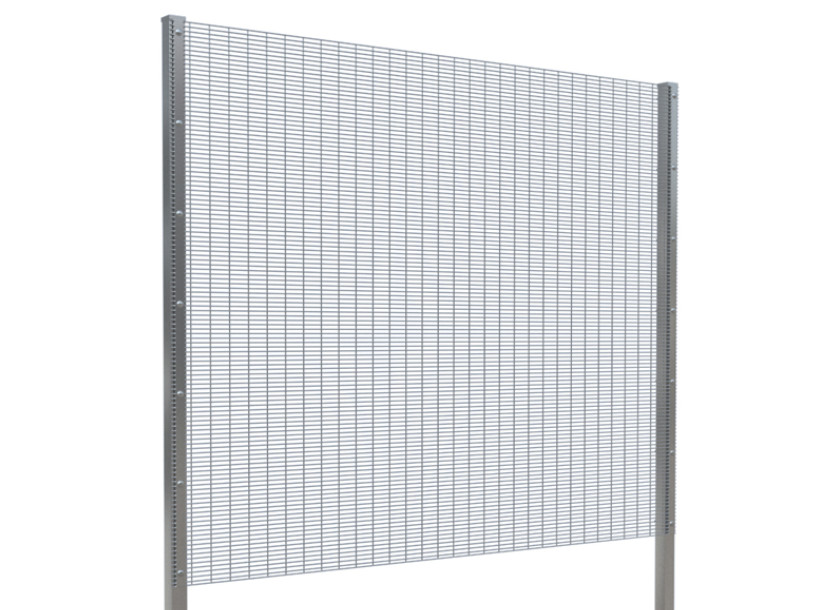

Description of 358 Security Fencing
The mesh size of horizontal wire 358 security fence is
76.2*12.7mm(center to center), the distance of horizontal wire is
12.7mm, and the distance of vertical wire is 76.2mm, it is very
popular in US Market and Malaysia Market. Horizontal wire 358
Security Fence has good anti-corrosion performance, anti-aging,
beautiful appearance and easy installation.
Anti-climbing - Due to the high-density mesh of the 358 guardrail,
it is impossible to grasp the hands and feet, which plays a very
good protection against climbing.
Anti-shear - the wire diameter is large, the mesh is dense, making
the wire cut useless.
Beautiful appearance - the mesh surface is flat, two-dimensional
three-dimensional, and the perspective is higher.
Material: Low carbon steel wire
Wire: 3mm,4mm
Mesh: 76.2*12.7mm(3’’*0.5’’)
Height: 1.2m-3m
Width: 2-3m
Post: 60*60mm,80*80mm,100*100mm, etc.
Accessories: post caps, clips or flat bar, nuts and bolts.
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Packaging: pallets
Certificates: ISO9001, BV,SGS
Specifications of 358 Security Fencing
| Specification of 358 Security Fencing |
| Mesh Opening | Wire Diameter | Panel Height | Panel Width | Post Type |
12.7x76.2mm
(0.5'' x 3'') | 3/3.5/4mm | 1.2-6m | 2.0-3.1m | Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm | Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm |
|
|
|
| Surface treatment:hot dipped galvanized, galvanized +powder coated,
galvanized +PVC coating. |
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be
customized. |
| Note:The fence can be customized according to your required if
above specification is not satisfied with you. |
| 358 fence | 2.1m | 2.4m | 3.0m |
| 358 fence hight | 2134mm | 2438mm | 2997mm |
| 358 fence width | 2515mm | 2515mm | 2515mm |
| 358 fence hole size | 12.7*76.2mm | 12.7*76.2mm | 12.7*76.2mm |
| wire | 4mm | 4mm | 4mm |
| wire | if need other wire diameter can order |
| 358 fence posts | 60*60*3mm | 60*60*3mm | 60*60*3mm |
| 358 fence posts length | 2.8m | 3.1m | 4.0m |
| no of fixings | 8 | 9 | 11 |
Features of 358 Security Fencing
1.Anti-climbing - Due to the high-density mesh of the 358
guardrail, it is impossible to grasp the hands and feet, which
plays a very good protection against climbing.
2.Anti-shear - the wire diameter is large, the mesh is dense,
making the wire cut useless.
3.Beautiful appearance - the mesh surface is flat, and the
perspective is higher.
4.Good viewing visibility, it is a type of high security clear view
fencing.
5.Welded well at each intersection.
6.Intrusion resistant, with extremely strong double vertical wire
design.
7.Small mesh aperture, anti-cut, anti-climb, finger-resistant and
toe-resistant.
8.Corrosion resistant with zinc aluminum alloy and PVC powder
coating.
9.Surface finish after welding, every weld-point are protected
well.
10.High strength with fully integrated with posts and anti-tamper
fixings.
Sizes of 358 Security Fencing
The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire
(tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system
combines an anticlimb and anticut fence with excellent through
visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground
to prevent burrowing.

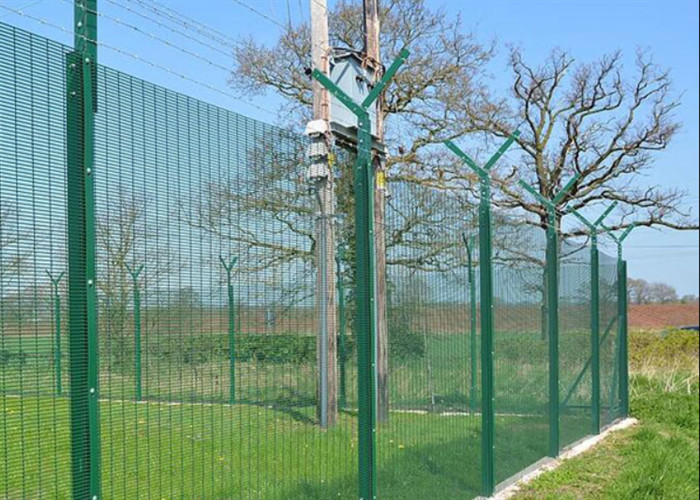

Application of 358 Security Fencing
With excellent see through visibility makes anti climb fencing is
very suitable to use on commercial, governmental and industrial
properties.And it is also suitable for premium housing estate
development, apartments and condominium surroundings, schools,
business parks, warehouses, power plants, military sites, education
facilities, hospitals and residential areas.
