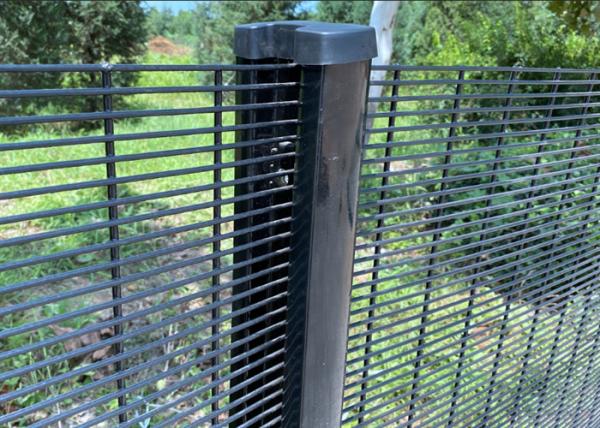

Description of 358 Security Fencing
The mesh size of horizontal wire 358 security fence is
76.2*12.7mm(center to center), the distance of horizontal wire is
12.7mm, and the distance of vertical wire is 76.2mm, it is very
popular in US Market and Malaysia Market. Horizontal wire 358
Security Fence has good anti-corrosion performance, anti-aging,
beautiful appearance and easy installation.
Anti-climbing - Due to the high-density mesh of the 358 guardrail,
it is impossible to grasp the hands and feet, which plays a very
good protection against climbing.
Anti-shear - the wire diameter is large, the mesh is dense, making
the wire cut useless.
Beautiful appearance - the mesh surface is flat, two-dimensional
three-dimensional, and the perspective is higher.
Horizontal wire 358 Security Fence Uses: Fence, decoration,
protection and other facilities in industries such as industry,
agriculture, municipalities, transportation, etc. It also used in
road green belt protection nets.
Material: Low carbon steel wire
Wire: 3mm,4mm
Mesh: 76.2*12.7mm,(3’’*0.5’’)
Height: 1.2m-3m
Width: 2-3m
Post: 60*60mm,80*80mm,100*100mm, etc.
Accessories: post caps, clips or flat bar, nuts and bolts
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Packaging: pallets
Certificates: ISO9001, BV,SGS
Specifications of 358 Security Fencing
| Specification of 358 Security Fencing |
| Mesh Opening | Wire Diameter | Panel Height | Panel Width | Post Type |
12.7x76.2mm
(0.5'' x 3'') | 3/3.5/4mm | 1.2-6m | 2.0-3.1m | Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm | Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm |
|
|
|
| Surface treatment:hot dipped galvanized, galvanized +powder coated,
galvanized +PVC coating. |
| Color:RAL 6005 green, RAL 7016 gray, All RAL color can be
customized. |
| Note:The fence can be customized according to your required if
above specification is not satisfied with you. |
| 358 fence | 2.1m | 2.4m | 3.0m |
| 358 fence hight | 2134mm | 2438mm | 2997mm |
| 358 fence width | 2515mm | 2515mm | 2515mm |
| 358 fence hole size | 12.7*76.2mm | 12.7*76.2mm | 12.7*76.2mm |
| wire | 4mm | 4mm | 4mm |
| wire | if need other wire diameter can order |
| 358 fence posts | 60*60*3mm | 60*60*3mm | 60*60*3mm |
| 358 fence posts length | 2.8m | 3.1m | 4.0m |
| no of fixings | 8 | 9 | 11 |
Features of 358 Security Fencing
1.Anti-climbing - Due to the high-density mesh of the 358
guardrail, it is impossible to grasp the hands and feet, which
plays a very good protection against climbing.
2.Anti-shear - the wire diameter is large, the mesh is dense,
making the wire cut useless.
3.Beautiful appearance - the mesh surface is flat, and the
perspective is higher.
Sizes of 358 Security Fencing
The panels are 2515mm wide and heights range from 900 to 5200mm.
Mesh sizes are 76.2 x 12.7mm, and manufactured from 4mm wires.
Weld strength is 75% of the minimum tensile strength of the wire
(tensile range 540-690 N/m²).
Featuring a toe and finger proof mesh aperture, this system
combines an anticlimb and anticut fence with excellent through
visibility and resistance to vandalism.
Extra length panels can be supplied for burying 300mm below ground
to prevent burrowing.
Application of 358 Security Fencing
- Bridge anti-climb guarding & guard safety screening.
- Psychiatric hospital security fencing.
- Prison security fencing.
- Factory machine guards.
- Walkway security fencing.
- Airport security fencing.
- Shipping Port Security fencing.
- Electrical sub-station fencing.
- Gas pipelines security fence.
- High security living area and private field fence.
Packing of 358 Security Fencing
- Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.
Customer Case
We supply high security 358 mesh fence with Electric fence system.
358 Mesh with 1600 x 80x60x4mm RHS posts and 50 x 80x60x4mm RHS
posts with 250x250x10mm base plates and M20 mounting holes on them.
6x6 meter double swing gates with heavy duty mounting posts and
swing 380Vac motors for automation.
The fence is galvernised, PVC powder coat in RAL 6005 green colour
including the electric fence posts. Insulators need to be in
military green.
Also include 300mm "Y" standard posts with 4x 10mm holes 100mm
centers covering 3700 meters, 1600 x 1300meters height. Also
include 20,000 meters 8mm steel rope to be mounted with "Y"
standard posts.
Technical Specification
The supply, manufacture and delivery to site, installation and
commissioning of a complete 2.4m high x 3700m long perimeter
security anti-climb fence with a 3.4m high multi zone Electric
fence system. The fencing system shall be installed with all the
components that enable it to be functional.
