PVC Coated / Galvanized Hexagonal Wire Mesh Gabion Basket For Retaining Wall

Description of Gabion Wire Mesh

Gabion box can be used for making slope, rock,slope vegetation,rail-way or highway guardrail mesh stable. Also it can be made into basket, mesh mat for protecting dam which easily ruined by flood and lead to property losses. Therefore, application of gabion basket is the best solution of solving the problem that give dams lasting protection.

Welded gabion box is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Welded Gabion box is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.

Intruduction of Gabion Wire Mesh

1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).

2. Zinc coating : 225-275g/m2.

3. Tensile strength between 380N/mm2 -- 500N/mm2.

4. Elongation≥ 12%.

5.Wire Diameter:2.4-3.5mm

6.Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.

7.Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.

Specificationof Gabion Wire Mesh

1. Wire Diameter

2. Mesh Size

Size(mm)
60x80
80x100
100x120
110x150
220x240

Features&Advantages of Gabion Wire Mesh

(1) Construction is simple,

(2) Can withstand a large range of deformation, but still does not collapse.

(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.

(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.

(5) Saving transportation costs.Fold transport and assemble on site.

(6) Good flexibility: no structural joints, the overall structure has ductility.

(7) Corrosion resistance: PVC coating is not afraid of erosion.

Application of Gabion Wire Mesh

Stone cage net is mainly used to guide the river water, rivers tend to follow the inherent flow channel, channel may be a natural bend channel, in the event of the flood, water quantity is huge, fast-flowing, water will be under the inertia, tending to straight to flow, will violently impact the original channel and dam, may be diverted the river, that will cause great disaster.In order to reduce the rapid water erosion of the embankment, the inside of the embankment or the edge of the channel, stone cage cage or stone cage mat, the turbulent river directly impact the stone cage cage or stone cage mat, so as to protect the embankment or channel.The river in the bend of the river, due to the stone cage cage or stone cage mat, the river will turn, along the inherent river flow.This will guide the river to ety.Stone cage net is also applied to spillway dam and diversion dam, to guide or restrain the flood.

a. Control and guide of water or flood

b. Flood bank or guiding bank

c. Preventing of rock breaking

d. Water and soil protection

e. Bridge protection

f. Strengthening structure of soil

g. Protection engineering of seaside area

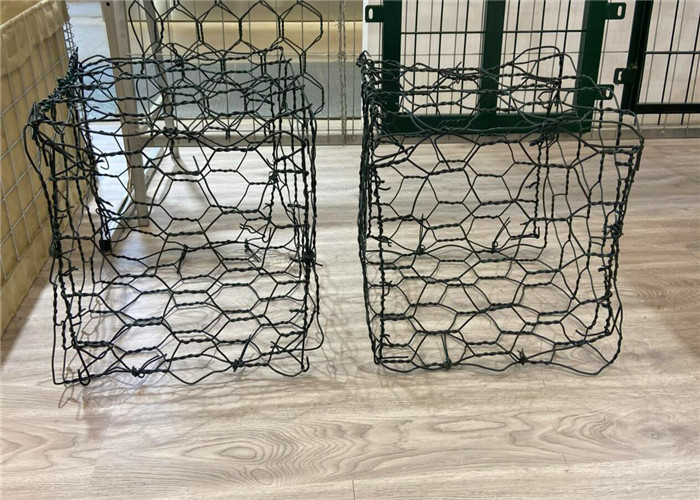

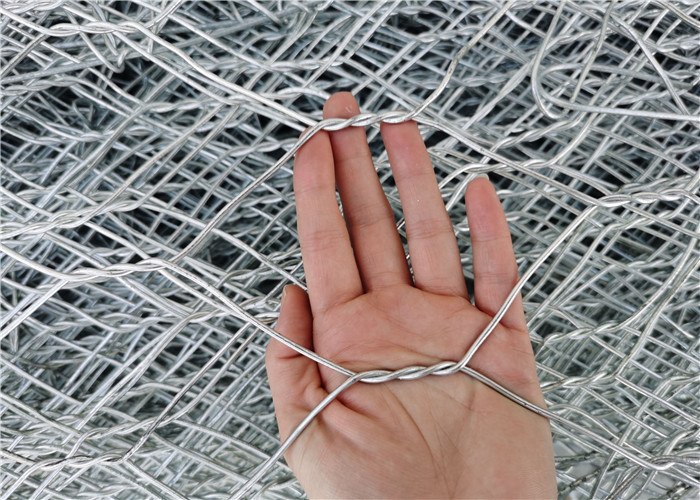

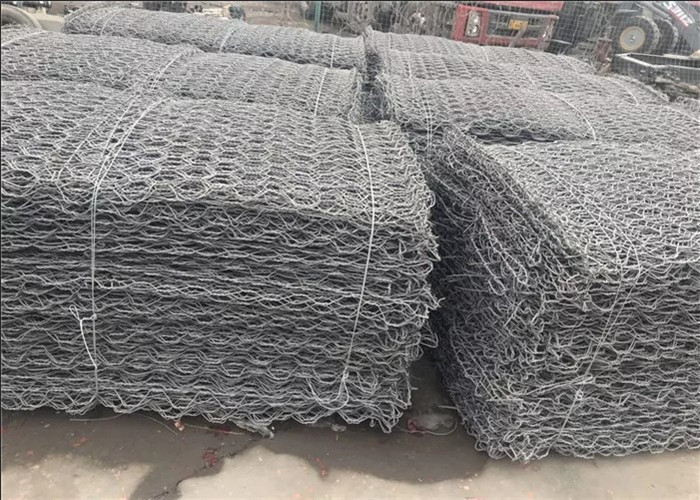

Product Show

Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.

Anping Yuanhai Wire Mesh Hardware Products Co.,Ltd.Founded in 2011,(Predecessor is Anping Jianghai Wire Mesh Hardware Products Co.,Ltd.)Plant is located in Asia's largest industrial area of the wire mesh--Anping County,Hebei Province.Company began to produce welded fence panel from 2002.After more than ten years of development,has become a collection of various screen R&D,production and sales enterprises.Now has more than 500 employees,annual production capacity of wire meshes,more than 30 million tons,is the large-scale backbone enterprises screen industry.

Main Producets:Metal tower packing,metal structured packing,demister pad,palisade fence,temporaty fence,358 fence,triangle fence,double loop wire fencing,razor barbed wire,gabion mesh,expanded metal mesh,steel grating,stainless steel filter mesh and other products.

Our company has the long-term business with oil,mining,construction,transportation and other municipal units to maintain a good cooperative relationship with United States,Japan,Russia,Germany,South Africa,Middle East Australia,ect.,customers in more than 70 countries.

We will continue to "Customer First,Integrity-Oriented" purposes,in order to innovate,the spirit of win-win coopration to forge ahead and the challenges of future to become the most influential industry leaders and the largest supplier of wire products continuously for domestic and foreign customers with the highest quality products and service.
