CY / BX Metal Wire Gauze Packing Metal Perforated Corrugated Plate
Packing

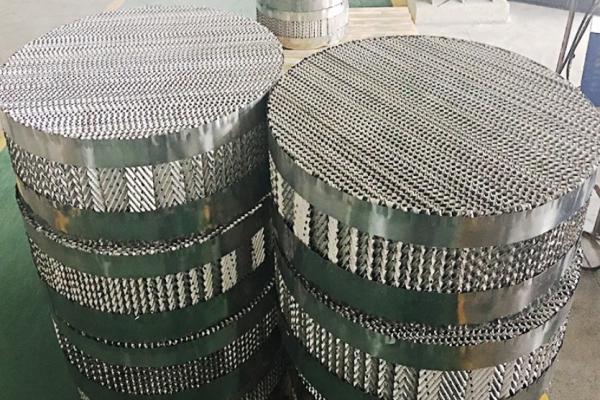

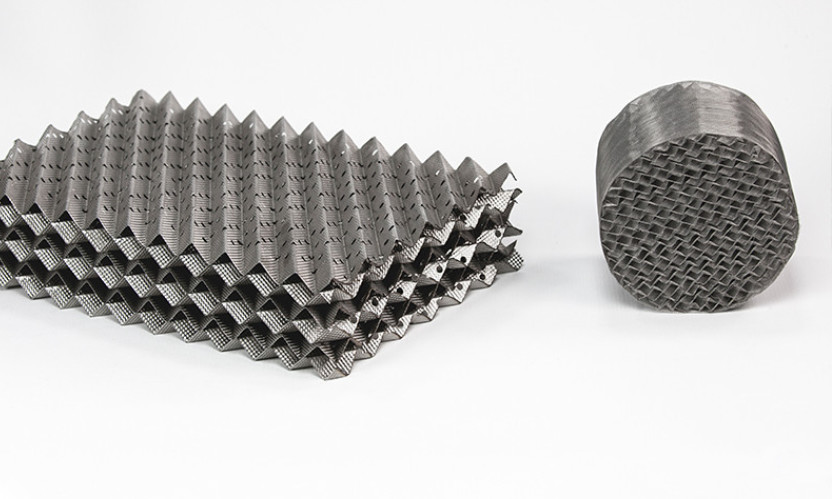

Metal Structured Packing Introduction
Demister pad is also known as mist eliminator, wire mesh separator
or wire mesh blanket. It separates mist or dust contained in a
fluid. This is a kind of high efficiency separation devices, is
essential in many process operations to remove liquid droplets from
gas or vapor streams.
Materials option: Stainless steel, 304, 304L, 316, 316L, etc.
Polypropylene, PTFE; Nickel, Titanium, Copper; Nickel-based alloys,
Monel alloy, etc.
Metal Structured Packing Technical Specification
The specification is based on SS304 material:
| Model | Wire Gauze Structured Packing |
| Material | SS 304, 304L, 410, 316, 316L, etc. |
| Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
| (m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | | |
| 250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
| 500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
| 700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
| | | | | | | | |
| Typical Application | Absorption, scrubbing and stripping services |
|
| Package : | Carton box; wooden box |
| Warranty: | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 |
| b) Offer lifetime consultation on problems occurred |
250(AX), Precision rectification for high productive capacity and less theoretical plate number.
500(BX), Vacuum rectification for thermosensitive system and hard separation system, especially
suitable for rectification with pressure lower than 7Kpa.
700(CX), Separation of isotopic compound and isomeric compound.
Metal Structured Packing Advantages
Metal wire mesh packing is the most widely used high efficient
filter in the world at present. Its main advantages are:
- High number of theoretical plates, large flux and low pressure
drop;
- Good performance with low working load, increased number of
theoretical plates with the decrease of gas load, and there is
almost no bottom limit of work load;
- Large operation elasticity;
- No obvious amplification effect;
- Fulfilling the requirements of precision, large and high vacuum
distillation units, providing favorable conditions for distillation
separation system, heat sensitive material and high purity
products.
Metal Structured Packing Application
Fine chemical, flavour factory, isomer separation. The separation
of thermally sensitive materials, testing tower and the improvement
of tower.
FAQ
Q: Are you a manufacturer?
A: Yes,we have specialized in this field for about 10 years
experience.
Q: Could you provide sample?
A: Yes,we can provide sample together with our catalogue. But the
courier charge will on your side. We'll send back the courier
charge if you make an order.
Q: What information should I provide,if I want a lowest quotation?
A: The specification of wire mesh.such as material,mesh number,
wire diameter,hole size,width,quantity,finishing.
Q: How is your delivery time?
A: We always prepare enough stock material for your urgent
requirement. the delivery time is 7days for all the stock material.
We'll check with our production department for the non-stock items
to offer you the exact delivery time and producing schedule.
Q: How do you ship the finished wire mesh?
A:Usually by sea.
Q: What is the payment?
A:We usually use the T/T,L/C,D/P,Western Union.
