Product Description:

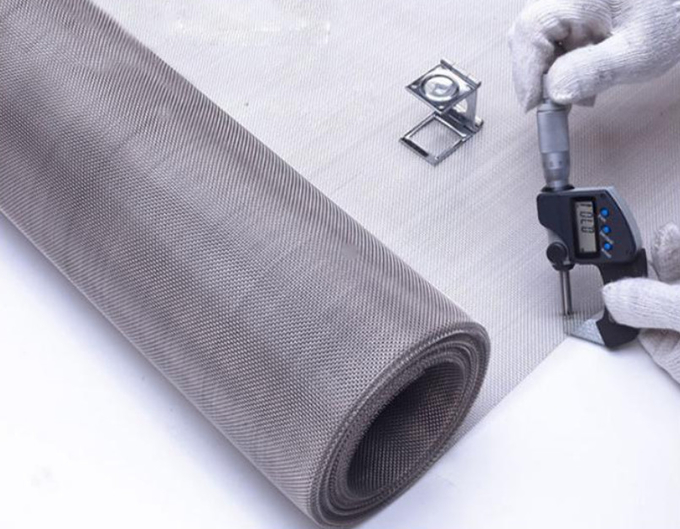

Stainless Steel Wire Mesh Filter Overview
The stainless steel wire mesh filter is made of 304/304L/316/316L
stainless steel material with wire diameter of 0.010 to 1.20mm and
has ISO9001:2015 certification. It is designed for mining, chemical
industry, food industry and pharmaceutical industry. The stainless
steel woven wire mesh is mainly used as wire mesh filter screen and
woven screen mesh. It is characterized by its excellent corrosion
resistance, high strength, superior performance and long service
life.
| Type | Mesh/Inch | Wire diameter
(inch) | OPen Area | Weight (LB)
/100 Square Foot |
| Plain,Twill Wire Mesh | 1 × 1-635 × 635 | 0.0008"-0.08" | 25 to 84.6 | 2.53 to 41.1 |
| Type | Mesh/Inch | Wire diameter
(inch) | Absolute Filtration
Finess μm | Nominal Filtration
Finess μm |
Plain Dutch Weave
Wire Mesh | 8 × 85 - 80 × 400 | 0.014'' × 0.0126''- 0.0049'' × 0.0028'' | 318-340 to 43-48 | 250-255 to 35-40 |
Twill Dutch Weave
Wire Mesh | 20 × 250 - 500 × 3200 | 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' | 110-120 to 8-9 | 98-105 to 2- |
Features:
- Product Name: Stainless Steel Wire Mesh Filter
- Customized: Accept
- Mesh Opening: 0.003 To 10mm
- Width: Up To 4000mm(Also Can Cut To 0.05—0.99m)
- Price: Negotiation
- Port of Loading: Xingang Port
- Specialty: Stainless Steel Wire Mesh, Stainless Steel Filter Screen, SS Woven
Wire Mesh, Stainless Steel Filter Mesh
Applications:
Yuanhai's SS woven wire mesh filter, model YH-008, is produced in
Hebei Province, China, and is ISO9001:2015 certified. With a
minimum order quantity of 50 PCS, it is also available in
customized sizes and specifications, and the price is negotiable.
The package can be arranged according to the customer's demand, and
the delivery time will depend on the quantity. Payment terms can be
TT/LC. A supply ability of 10,000 PCS/10 days is available. The
mesh opening of this stainless steel filter screen ranges from
0.003 to 10mm, and its width can reach up to 4000mm (or be cut into
0.05—0.99m).
This SS woven wire mesh filter is widely used in mining, chemical
industry, food industry and pharmaceutical industry. It is made of
high-grade stainless steel and is rust-proof and wear-resistant. It
is also highly durable and can be used for a long time. It has a
wide range of applications, such as being used as filter screen,
filter cloth, filter discs, filter tube and filter mesh in various
industries. It is also suitable for various liquids and gases
filtration and separation.
Yuanhai's SS woven wire mesh filter is well known for its excellent
quality and performance. It is cost-effective and provides
customers with a reliable and e filtration solution. It is also
highly reliable and can be used in all kinds of extreme
environment.
Support and Services:
Technical Support and Service for Stainless Steel Wire Mesh Filter
We provide technical support and service for Stainless Steel Wire
Mesh Filter, including:
- Assistance with product selection to ensure the best Stainless
Steel Wire Mesh Filter for your application.
- Help with installation, maintenance and repair.
- Replacement parts and components.
- 24/7 support and customer service.
- Training and troubleshooting.
If you have any questions or need assistance, please contact us. We
are here to help you find the right solution for your application.
Packing and Shipping:
Stainless Steel Wire Mesh Filter packaging and shipping:
Stainless Steel Wire Mesh Filters are packaged in cartons, boxes,
and other suitable containers. All containers are clearly labeled
with product information and barcodes. They are then shipped via
air, land, and sea freight.
FAQ:
Questions & Answers about Yuanhai YH-008 Stainless Steel Wire Mesh
Filter
- Q: What is the Brand Name of this product?
- A: The Brand Name of this product is Yuanhai.
- Q: What is the Model Number of this product?
- A: The Model Number of this product is YH-008.
- Q: Where is this product made?
- A: This product is made in Hebei Province, China.
- Q: What certification does this product have?
- A: This product has ISO 9001:2015 certification.
- Q: What is the minimum order quantity?
- A: The minimum order quantity is 50 PCS.
