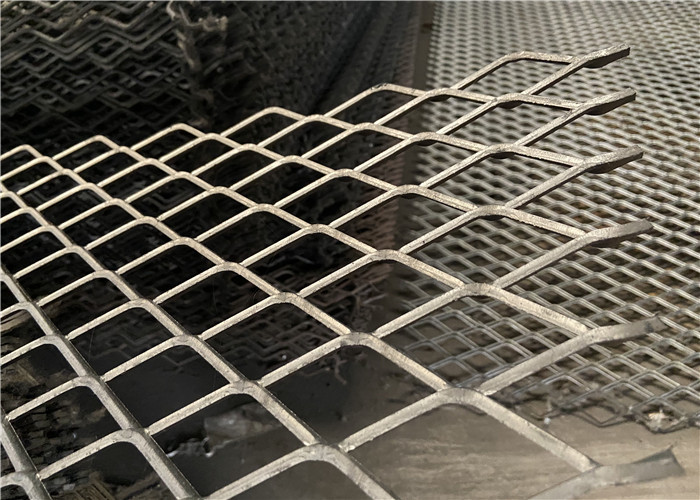

Expanded metal sheets are created by slitting and cold-forming
metal as it expands in a press. This process creates diamond-shaped
openings that are nominally measured the long way of the diamond
(LWD) and the short way of the diamond (SWD). Raised, or standard,
expanded sheets offer a skid-resistant surface and a high
strength-to-weight ratio. Flat expanded sheets have been rolled for
a smooth, level surface. Expanded metal sheets are measured by the
percentage of open area, which is the ratio of open space to total
space in a given area. A sheet with a larger percentage of open
area contains less material than one with a smaller percentage.
EXPANDED MESH |
| Thickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width & Length |
| 0.5 | 2.5 | 4.5 | 0.5 |
Width: 0.5m-2.0m Length: 30m, 50m
Other sizes can be made as request |
| 0.5 | 10 | 25 | 0.5 |
| 0.6 | 10 | 25 | 1 |
| 0.8 | 10 | 25 | 1 |
| 1 | 10 | 25 | 1.1 |
| 1 | 15 | 40 | 1.5 |
| 1.2 | 10 | 25 | 1.1 |
| 1.2 | 15 | 40 | 1.5 |
| 1.5 | 15 | 40 | 1.5 |
| 1.5 | 23 | 60 | 2.6 |
| 2 | 18 | 50 | 2.1 |
| 2 | 22 | 60 | 2.6 |
| 3 | 40 | 80 | 3.8 |
| 4 | 50 | 100 | 4 |
| 4 | 60 | 120 | 4 |
| 4 | 80 | 180 | 4 |
| 4 | 100 | 200 | 4 |
| 4.5 | 50 | 100 | 5 |
| 5 | 50 | 100 | 5 |
| 5 | 75 | 150 | 5 |
| 6 | 50 | 100 | 6 |
| 8 | 50 | 100 | 8 |
Expanded Metal Sheet Feature
1)Strong and durable, with Elegant appearance
2)Easy maintenance, high visibility.
3)Antioxidant and corrosion resistant, long lifetime.
4)Convenient installation, and not easy to be damaged.
5)Environmental protection product, can be recycled.
Surface Treatment
Electric Galvanized, Hot dipped galvanized , Plastic painting, PVC
coated
Expanded Metal Sheet Application
Expanded Metal is used widely throughout the transportation
industry, agriculture, security, machine guards, floorings,
construction, architecture and interior design. The use of this
kind of expanded metal mesh is highly beneficial, and of cost
saving and low maintenance.
We manufacture a full range of standard and flattened expanded
metal, structural grating, micro mesh and decorative patterns. Raw
material can be produced in carbon, galvanized, stainless steel or
high strength alloy steel. Certain alloys of copper, brass, bronze
and plastics can be expanded as well.
Expanded metal steel series, hole strong and long service life, use
a wide range, mainly used in civil engineering batch of
cement,machinery and equipment protection, handicraft
manufacturing, high-end speaker net enclosures. Highway guardrail,
sports venues fence, the road green belt protection net. Network
can be used for heavy-duty steel foot tanker net, heavy machinery
and boilers,oil wells. Locomotive, million tons of ships working
platforms, escalators, walkways. Also can be used for construction,
roads, bridges reinforced with also application and defense
industry, railway, highway, shipbuilding, coal, textile, building
materials,agricultural and sideline, aquaculture, gardens,
minerals, petrochemicals, household appliances, also applies to
integrated ceiling, anti-theft doors and windows, e passage
corridor stairs baffle, tables and chairs, vents, all carrying
cargo boxes, shelves and so on. Nowadays, most suitable for use on
the railway fence material is steel net!
Expanded Metal Sheet Warehouse
