Product Description:
Gabion basket, also known as gabion mesh, green grid, gabion
retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc.
has been widely used in recent years in traffic, water conservancy,
municipal, gardens, soil and water conservation and other
engineering projects. This structure is made from high-strength low
carbon galvanized steel wire or 5%-10% thin alloy coated steel wire
(or homogeneous coated polymer steel wire). The wires are twisted
and hexagonal mesh mesh by machine, and the length of the double
hinge part should not be less than 5cm in order not to damage the
protective coating of the steel wire. Refer to YB/T4221-2010 for further details.
The gabion mesh can be assembled into boxes according to
engineering design requirements and be connected with blocks and
stones filling materials. As a result, it is used as a new
technology in embankment, roadbed protection and other engineering
works.

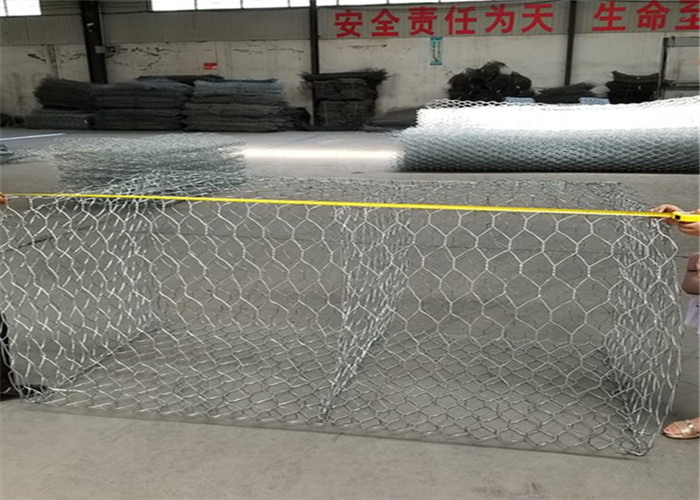

| Gabion Box 2m x 1m x 1m,3m x 1m
x 1m,4m x 1m x 1m, |
Mesh Size
(mm) | Number of Diaphragm | Approximate dimensions and Volumes | Tolerance | Color | Wire diameter
(mm) |
Length
(m) | Width
(m) | Height
(m) | Capacity
(m³) |
80x100
80x120
100x120
120x150 | 1 | 2.00 | 1.00 | 0.30 | 0.60 | Length±5%
Width±5%
Height±5% | Blue
RedGreen
Black | 2.0-4.0 |
| 1 | 2.00 | 1.00 | 0.50 | 1.00 |
| 1 | 2.00 | 1.00 | 1.00 | 2.00 |
| 2 | 3.00 | 1.00 | 0.30 | 0.90 |
| 2 | 3.00 | 1.00 | 0.50 | 1.50 |
| 2 | 3.00 | 1.00 | 1.00 | 3.00 |
| 3 | 4.00 | 1.00 | 0.30 | 1.20 |
| 3 | 4.00 | 1.00 | 0.50 | 2.00 |
| 3 | 4.00 | 1.00 | 1.00 | 4.00 |
| 1 | 2.00 | 0.50 | 0.50 | 0.50 |
| 2 | 3.00 | 0.50 | 0.50 | 0.75 |
| Note: other size can be produced according to customer's request |
Features:
River stone cage, also known as gabion mesh, green grid, gabion
retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc.,
is a new material structure that has been widely used in recent
years in traffic, water conservancy, municipal, garden, soil and
water conservation and other engineering projects.
They are made of high-strength and low carbon galvanized steel
wires or 5%-10% thin alloy coated steel wires (or homogenous coated
polymer steel wires) with corrosion resistance, which are twisted
and twisted into hexagonal meshes by machine. The length of the
double hinge part should not be less than 5 cm in order not to
damage the protective coating of the steel wire. For details,
please refer to the Industry Standard YB/T4221-2010.
Gabion mesh can be assembled into boxes according to engineering
design requirements, and rocks and other filling materials can be
connected into one, which can be used as embankment and roadway
protection for new technologies in engineering.
Technical Parameters:
This material used in the production is low carbon steel wire. It
is characterized by two aspects: specifications and weaving
technology. The specifications are 2X1X1, 3X1X1, 4X1X1 and
customizable (M), and the weaving technology is twist knitting. The
mesh is from a quarter to eight, the wire diameter is within the
range of 1.5 mm to 5.0 mm, and the aperture is 60*80, 100*120,
120*150, and 160*180. This product originates in Anping, Hebei. It
has a wide array of uses, including coastal defense engineering,
river protection, garden landscape, etc. It is finished with a
surface treatment process of plastic-coated PVC.
Applications:
Stone cage net is mainly used to guide the river water. Rivers tend
to follow the inherent flow channel, which may be a natural bend
channel. In the event of a flood, with its huge and fast-flowing
water quantity, the water will be under the inertia, tending to
straighten its flow and violently impact the original channel and
dam, possibly diverting the river and causing great disaster.
In order to reduce the rapid water erosion of the embankment, Stone
Cage Cage or Stone Cage Mat is installed inside the embankment or
along the edge of the channel. The turbulent river directly impacts
the Stone Cage Cage or Stone Cage Mat, thus protecting the
embankment or channel. On the bend of the river, due to the Stone
Cage Cage or Stone Cage Mat, the river will be guided to turn,
along its inherent river flow, leading it to ety.
Stone cage net is also applied to spillway dams and diversion dams,
in order to guide or restrain the flood. With its presence, these
engineering structures will be much more effective and e.
Support and Services:
Technical Support and Service for Gabion Wire Mesh
We offer a comprehensive technical support and service for Gabion
Wire Mesh. Our experienced staff can help you choose the right
product for your needs and provide answers to any questions you may
have. We also provide installation and maintenance services, as
well as on-site troubleshooting and repair.
Our team of experienced technicians are available to help with any
issues you may experience. We provide personalized service to
ensure that you get the most out of your Gabion Wire Mesh. We also
offer advice on how to best use and maintain your product.
We strive to provide the highest quality technical support and
service for Gabion Wire Mesh. We are committed to delivering
superior customer service and satisfaction. If you have any
questions or concerns, please do not hesitate to contact us.
FAQ:
- Q1: What is Gabion Wire Mesh?
- A1: Gabion Wire Mesh is a kind of mesh with hexagonal opening,
which is made of high quality galvanized iron wire or PVC coated
wire.
- Q2: What is the Brand Name of Gabion Wire Mesh?
- A2: The Brand Name of Gabion Wire Mesh is Yuanhai.
- Q3: What is the Model Number of Gabion Wire Mesh?
- A3: The Model Number of Gabion Wire Mesh is YH-08.
- Q4: Where is the Place of Origin of Gabion Wire Mesh?
- A4: The Place of Origin of Gabion Wire Mesh is Hebei Province,
China.
- Q5: What is the Minimum Order Quantity for Gabion Wire Mesh?
- A5: The Minimum Order Quantity for Gabion Wire Mesh is 100 PCS.
