Product Description:
Gabions, also known as Gabion Mesh, Green Grid, Gabion Retaining
Wall, Reynolds Pad, Reinforced Gabion, Gabion Cage, and the like,
are a newly developed material used increasingly in traffic, water
conservancy, municipal, garden, soil and water conservation, and
other engineering projects.
Gabions are made from corrosion-resistant, high-strength,
low-carbon galvanized steel wire, or 5-10% thin alloy coated steel
wire (or homogeneous coated polymer steel wire). These are twisted
and meshed into hexagonal shapes, with double hinge lengths no less
than 5 cm, in order to maintain the protective coating of the steel
wire.
Gabion Mesh can be arranged into boxes as per engineering design
requirements, and attached with blocks and stones, forming one unit
used in embankment and roadways as a new engineering technology.
| gabion specifications | Mesh hole modle |
| 8x10cm | 6x8cm |
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated |
| Mesh diameter | Zinc | Mesh diameter | Zinc |
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m |
| Length(m) | Width(m) | Height(m) | Volume(m³) |
| 2 | 1 | 0.5 | 1 |
| 4 | 1 | 0.5 | 2 |
| 6 | 2 | 0.5 | 6 |
| 1.5 | 1 | 1 | 1.5 |
| 1 | 1 | 1 | 1 |
| 2 | 1 | 1 | 2 |
| 3 | 1 | 1 | 3 |
| 4 | 1 | 1 | 4 |
| 2 | 0.5 | 0.5 | 0.5 |
| 4 | 0.5 | 0.5 | 1 |
Features:
River stone cage, also known as gabion mesh, green grid, gabion
retaining wall, Reynolds pad, reinforced gabion, and gabion cage is
becoming an increasingly popular material structure in the recent
years. This mesh is used in traffic projects, water conservancy,
municipal, gardens, and soil and water conservation engineering.
Ecological grid consists of corrosion resistance high-strength low
carbon galvanized steel wires or 5%~ 10% thin alloy coated steel
wires or homogenous coated polymer steel wires which are
machine-twisted to form hexagonal mesh. The length of double hinged
parts should not be less than 5 cm in order to prevent steel wires
from getting damaged. Further information about this can be found
in industry standard YB/T4221-2010.
Gabion mesh can be assembled and packed into boxes according to
specific engineering design requirements. After filling with
blocks, stones, and other materials, the mesh can be connected into
one and used as embankment and road bed protection featuring a new
technological innovation.
Technical Parameters:
This steel wire is made of low carbon steel, and it can be
customized according to your requirements. The weaving technology
used to craft this piece is twist knitting. The wire diameter
ranges from 1.5 to 5.0 mm. The mesh size of this wire varies from a
quarter to eight, and the aperture ranges from 60*80 *100 *120

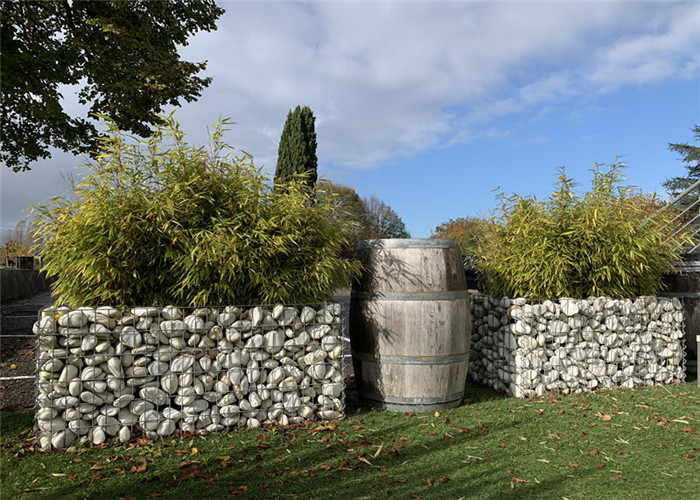

120*150 160*180. This product comes from Anping, Hebei and it has
many functions, such as coastal defense engineering, river
protection and garden landscape. It also goes through a surface
treatment process, that is to coat it with PVC plastic.
Applications:
Stone cage net is mainly used to guide the river water, since
rivers tend to follow the path of least resistance, which is their
natural flow channel. In the event of a flood – with its massive,
rapid-moving water – the water will carry it along this inherent
channel, and its force may even divert it from its original path.
This can cause tremendous damage to the embankment or channel.
In order to reduce this erosion, stone cage cages or stone cage
mats are placed inside the embankment or near the edges of the
channel. When the turbulent river strikes these barriers, it will
be deflected away from the embankment or channel, protecting it
from harm.
The river is also turned towards its natural path around river
bends. With the stone cage cages or mats in place, the river will
adjust its course to follow the natural flow of the river. This in
turn will help guide river and its water ely and securely.
Stone cage nets are also applied to spillway dams and diversion
dams, in order to guide and control the flood flow.
Support and Services:
Technical Support and Services for Gabion Wire Mesh
We provide comprehensive technical support and services for Gabion
Wire Mesh. Our services include:
- Answering questions about the installation and use of Gabion Wire
Mesh.
- Providing technical support for troubleshooting any issues related
to Gabion Wire Mesh.
- Providing advice on proper maintenance and repair of Gabion Wire
Mesh.
- Providing consultation and guidance on the selection of the most
suitable Gabion Wire Mesh for a particular application.
- Providing information and advice on the best way to use Gabion Wire
Mesh in a specific environment.
We understand the importance of reliable and effective Gabion Wire
Mesh in a variety of applications, and our team of experts is here
to provide you with the information and support you need.
FAQ:
Q&A about Gabion Wire Mesh
- Q: What is the brand name of your Gabion Wire Mesh?
A: The brand name of our Gabion Wire Mesh is Yuanhai. - Q: What is the model number of your Gabion Wire Mesh?
A: The model number of our Gabion Wire Mesh is YH-08. - Q: Where is your Gabion Wire Mesh manufactured?
A: Our Gabion Wire Mesh is manufactured in Hebei Province, China. - Q: What certifications does your Gabion Wire Mesh have?
A: Our Gabion Wire Mesh has ISO9001:2015 certification. - Q: How many Gabion Wire Mesh should I order at least?
A: You should order at least 100 PCS of Gabion Wire Mesh.
