YH-006 SS304 Metal Tower Packing Free Sample and Efficiency ISO9001
Product Description:

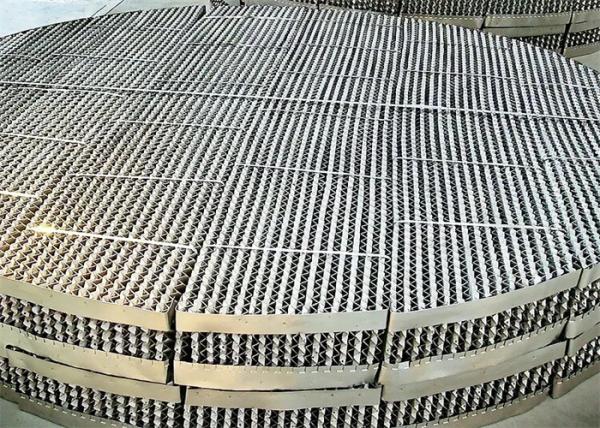

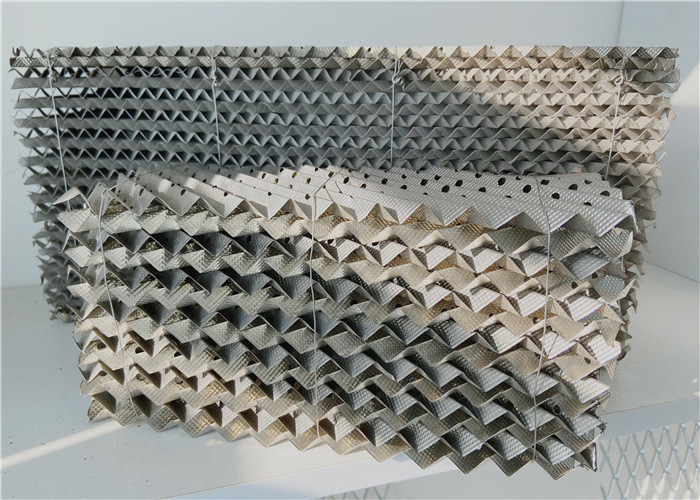

Metal Structured Packing is composed of perforated plates with
channel corrugations on surfaces. This retains the structural
feature of metal wire gauze packing.
The metal structured tower packing has enhanced features such as
uniform liquid distribution and increased surface wettability,
which result in an increased mass transfer efficiency. Other
advantages of metal structured packing include a large specific
surface area, high void ratio, light weight, small and regular gas
paths, low pressure drop, good radial diffusion, and sufficient
gas-liquid contact.
| Model | Wire Gauze Structured Packing |
| Material | SS 304, 304L, 410, 316, 316L, etc. |
| Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
| (m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | | |
| 250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
| 500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
| 700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
| | | | | | | | |
| Typical Application | Absorption, scrubbing and stripping services |
|
| Package : | Carton box; wooden box |
| Warranty: | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 |
| b) Offer lifetime consultation on problems occurred |
Applications:
Optimized metal tower packing is often used for vacuum distillation
and heat transfer.
For gas absorption, wet scrubbers are widely used. These have the
advantage over other systems as they are able to remove water
soluble aerosols as well as certain harmful gases from exhaust air.
Cooling towers are also used for heat transfer, helping equipment
to efficiently release heat without overheating.
For liquid particle removal, mist eliminators are the preferred
choice. These enable collection of smaller particles within the
process system.
Gas absorption columns and gas strippers are also utilized,
enabling the efficient transport of gas or liquid vapour from one
area to another.
Finally, air washers are ideal for air cleaning, and are often seen
in HVAC systems.
Customization:
Metal Tower Packing
Brand Name: Yuanhai
Model Number: YH-009
Place of Origin: Hebei Province,China
Port: Tianjin Xingang Port
Material: SS304 SS304L SS316 SS316
Pressure Resistance: High
Price: Negotiable
Shape: Round, Ring
Metal Random Packing, Tower Packing For Gas Scrubbing , Tower
Packing For Gas Scrubbing
Support and Services:
Metal Tower Packing provides technical support and services to
ensure that our customers have the best experience possible. Our
technical team is available 24/7 to answer any questions and
provide guidance on installation, usage, and maintenance of our
products. We also offer regular maintenance and troubleshooting
services to ensure that our products are running smoothly.
Furthermore, we provide free training and consultation services to
help customers maximize the performance of their Metal Tower
Packing products.
Packing and Shipping:
Metal Tower Packing is packaged and shipped in a variety of ways to
meet the needs of customers. Depending on the size and weight of
the product, it can be shipped in boxes, crates, or even pallets.
All packages are secured with protective materials to ensure a e
delivery. Delivery time depends on the shipping method chosen.
Delivery options include ground, air, and express.
FAQ:
- Q: What is the brand name for Metal Tower Packing?
A: The brand name for Metal Tower Packing is Yuanhai. - Q: What is the model number for Metal Tower Packing?
A: The model number for Metal Tower Packing is YH-009. - Q: Where is Metal Tower Packing made?
A: Metal Tower Packing is made in Hebei Province, China. - Q: What are the advantages of using Metal Tower Packing?
A: Metal Tower Packing has the advantages of high loading capacity,
low pressure drop, large specific surface area, and high mass
transfer efficiency. - Q: What is the size range of Metal Tower Packing?
A: The size range of Metal Tower Packing is from 0.5 mm to 50 mm.
